Armourshield Roller Grilles
Tough security with good visibility and airflow DownloadL20 Spec.
Armourshield's tough steel rods make it a secure barrier, whilst maintaining a great sense of openness.
Armourshield grilles are ideally placed behind glazing to form a double barrier with the glass.
The Armourshield roller shutter is a tough, continental style security grille with an elegant, open look and feel.
With an Armourshield roller grille you maintain a great sense of openness while securing an area.
Armourhield is a tough security grille with an elegant, open look and feel to it. HVP's Armourshield grilles are ideal for bars, reception counters and shop-fronts.
The tough, steel rods on the Armourshield make it a very secure shutter. At the same time, the open construction of Armourshield roller grilles allows goods to be displayed very well.

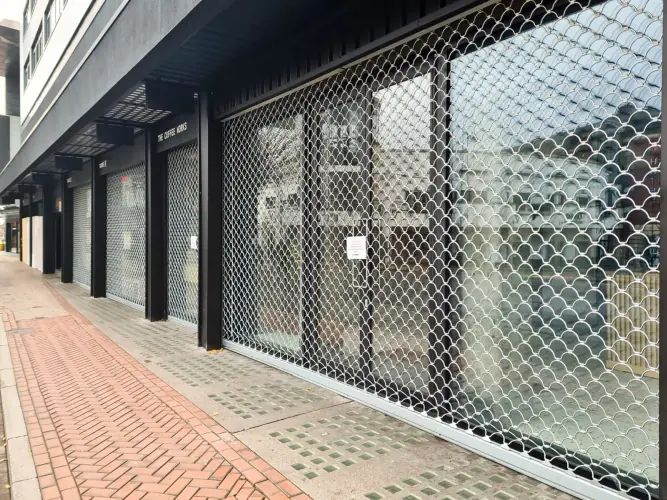

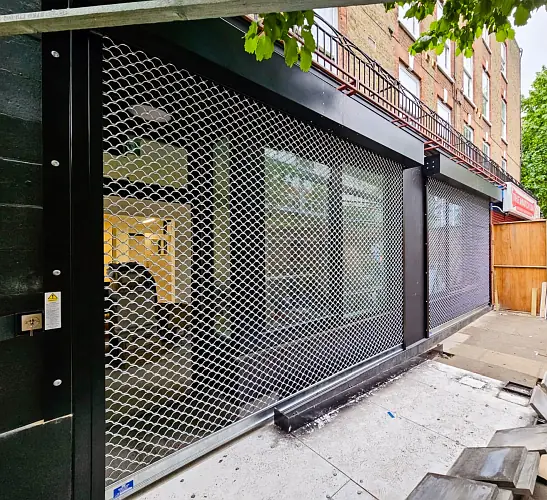

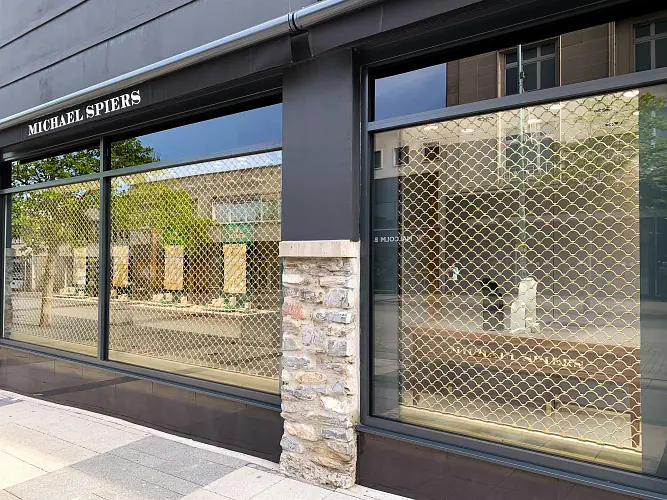

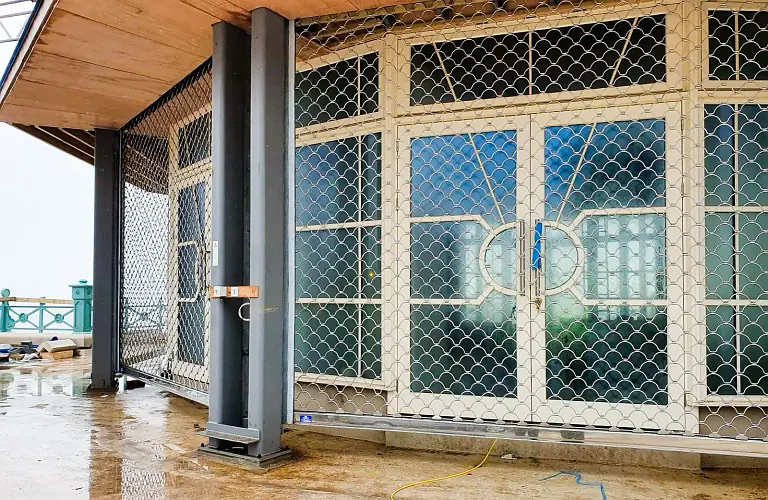

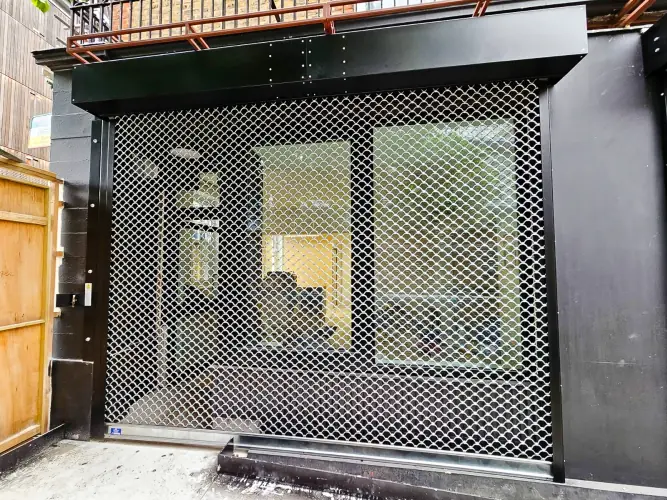

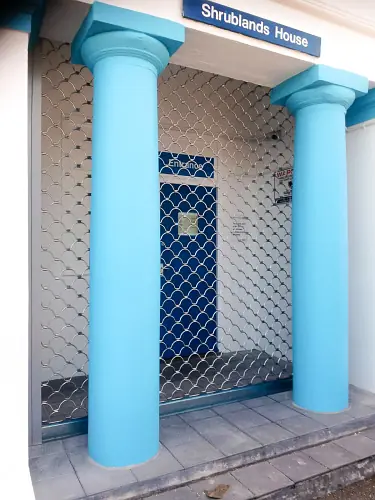

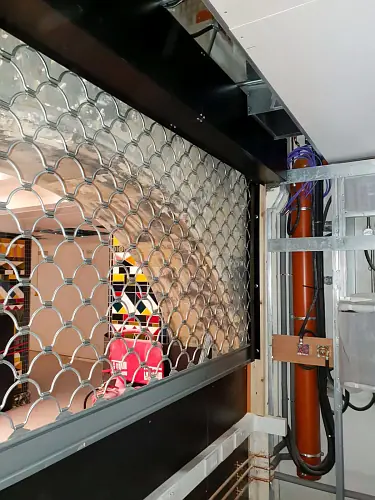

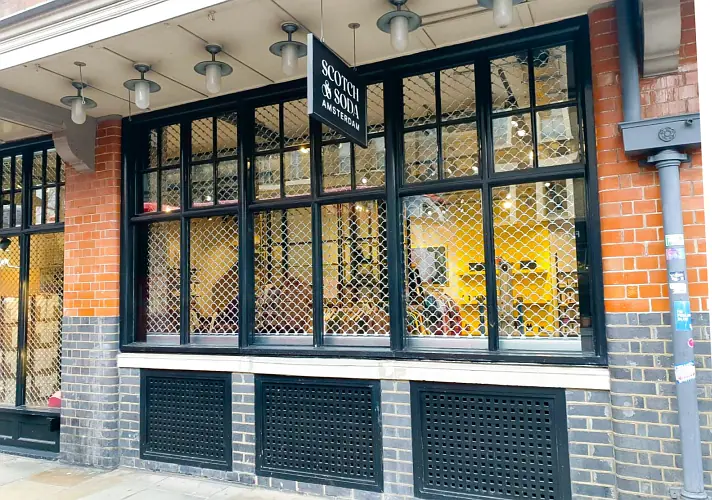

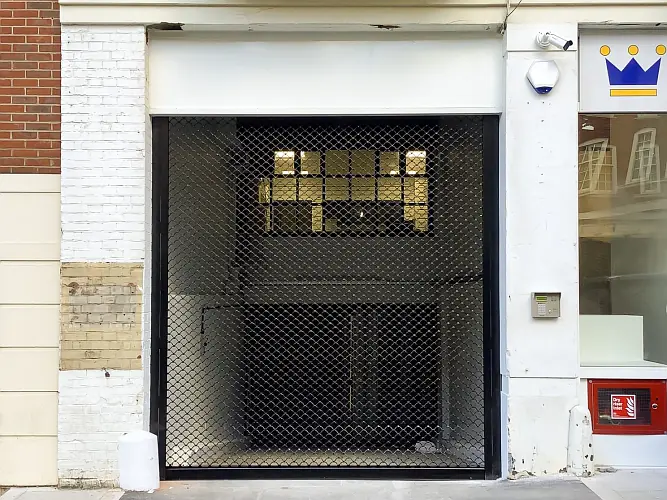

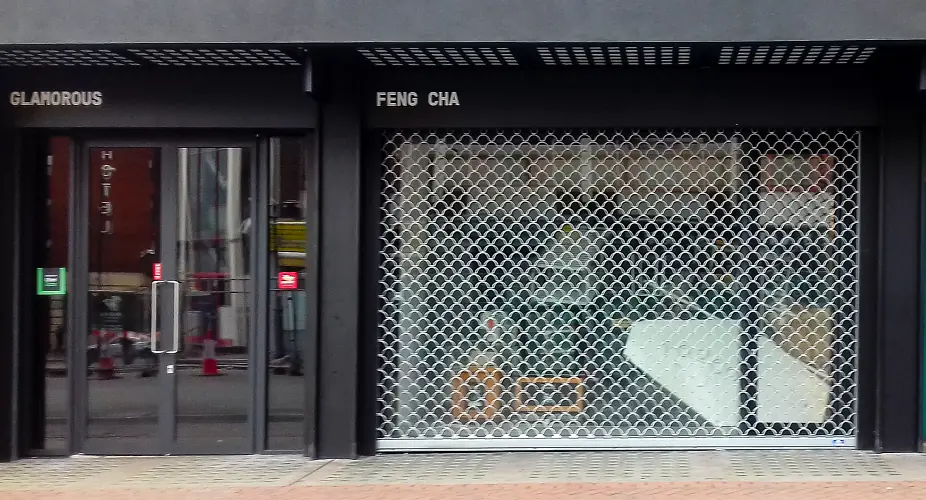

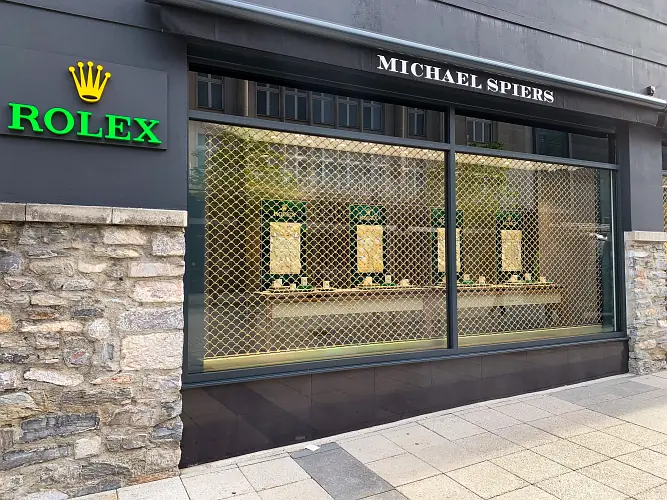

Images Armourshield security roller grilles
Armourshield roller grille technical specification
Technical Specification Armourshield roller grille
Roller grille in variety of patterns
Construction:
Manufactured from 6mm or 8mm solid steel bars, press formed into the grille profile. Grille bars locked together with pressed steel clips; roll-formed steel bottom rail (8mm grille); galvanised steel guides 10 gauge 65mm - 104mm x 33mm.
Operation:
Electric operation by internal tubular motor with manual override facility. Safety brake fitted when required to comply with BS EN 13241:2003-1 (HVP Security Shutters' general policy is to fit a safety brake unless specified otherwise).
Locking Options:
Electrically operated shutters are generally self-locking. For additional security HVP Security Shutters recommends guide pin locks or a ground padlocking unit combined with a motor isolator box.
Finish:
Zinc plated in silver or gold colour, or stainless steel (8mm grille only)
Rod size and aperture:
Rod size 6mm:
Aperture size: 60mmW x 50mmH (approximate area 20cm2)
Rod size 8mm:
Aperture size: 110mmW x 105mmH (approximate area 90cm2)
Size guide:
| Shutter height (to top of endplate) |
Typical endplate | Typical guide set back (from front of endplate) |
|---|---|---|
| Up to 2400mm | 305 x 305mm | 25mm |
| Up to 3600mm | 355 x 355mm | 30mm |
| Up to 4500mm | 405 x 405mm | 30mm |
Maximum size: 5500mmW x 3500mmH (please contact HVP for full details)
Contact HVP at 01392 270218 for shutter weights or any other questions you may have. We'll be happy to assist.
Technical drawings
The technical drawing below shows plan and profile views of the Armourshield grille. Hover over the image for more detail.
Face fixed arrangement
Diagram of face fixed and reveal fixed roller grille
Description Armourshield roller grilles
The Armourshield is a continental style roller grille that is back in demand. The tough steel rods make it a secure barrier, whilst maintaining a great sense of openness.
The combination of high security and maximum amount of open space make this grille ideal for shop fronts (preferred by most local authorities). Ideally, the grille is placed behind glazing, where it forms a double barrier with the glass. An external fit is not recommended for high risk areas.

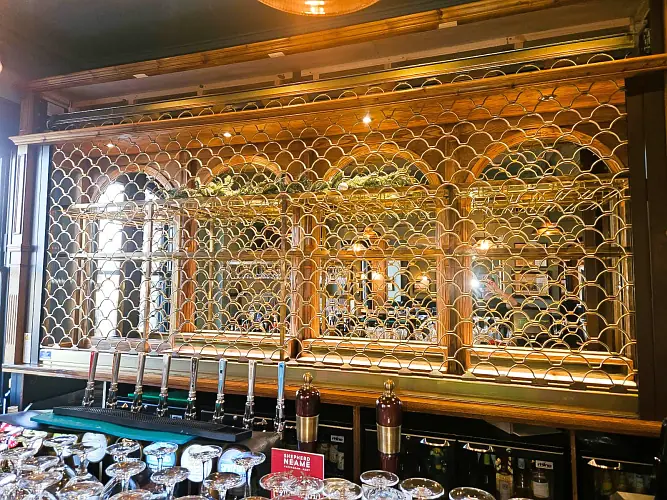

At bars, serveries and reception counters, the Armourshield creates an attractive and securely locked barrier with maximum visibility.
The Armourshield roller grille is available in two thicknesses: standard 6mm steel or 8mm steel for higher levels of security.
Alternative grille styles
Armourshield security grilles can be made in 4 different styles, creating different patterns and levels of security.
Styles A and B use the same materials, but style A has smaller apertures, which makes it more suitable for bars, serveries and receptions.
Armourshield Style A - standard shell
Armourshield Style B - standard ring
Style C includes a solid bar within the rings. This reduces the aperture size and increases the strength and security.
Armourshield Style C - ring with intermediate reinforcing
Style D adds an additional solid steel bar between the rings to give the maximum security rating.
Armourshield Style D - ring with full reinforcing
All these styles are available with either 6mm or 8mm solid steel bars.
Armourshield roller grille suitability
Armourshield security roller grilles are typically used on shop fronts, bars and serveries. These elegant but strong security grilles let through full natural light and air.
Behind glass, Armourshield security grilles provide a double barrier, allowing full visibility of goods on display.
On bars, serveries and reception counters, these grilles are an attractive and secure barrier with maximum visibility and airflow.
Downloads Armourshield Roller Grilles
Below are downloads of HVP Armourshield roller grilles: technical drawings, specification texts a technical brochure/fact-sheet.
- Armourshield Security Grille Brochure
- Architectural drawings on request
- Armourshield Specification - Grille specification text in L20 format
- Full specification pack - All the above in a single download
Please contact us for further information such as roller grille weights, available colours, technical advice or project specific drawings. We'll be happy to help with any further information you require.
